- 3G-10G 1100nm-1650nm InGaAs Coaxial Pigtail Pin Photo Diode

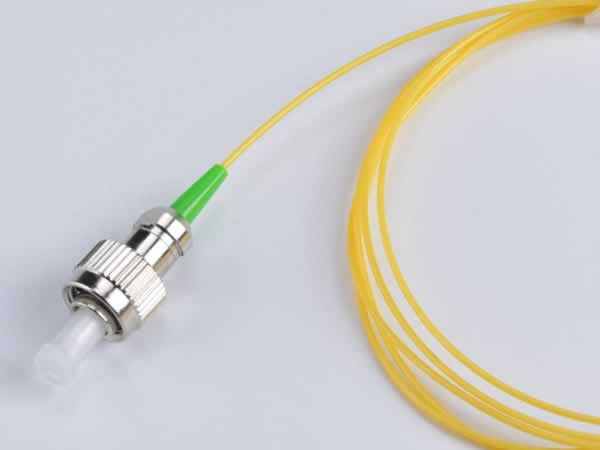

3G-10G 1100nm-1650nm InGaAs Coaxial Pigtail Pin Photo Diode
The 3-10g 1100nm-1650nm INGaAS coaxial pigtail pin photo diode employs a small, coaxial package and InGaAs detector chip. It features a very low power consumption, a small dark current, low return loss, good flexibility, great linearity, compact design, small volume, high reliability, and long service life. This product series is most often used in CATV receivers, in optical signal receivers in analog systems, and power detectors.

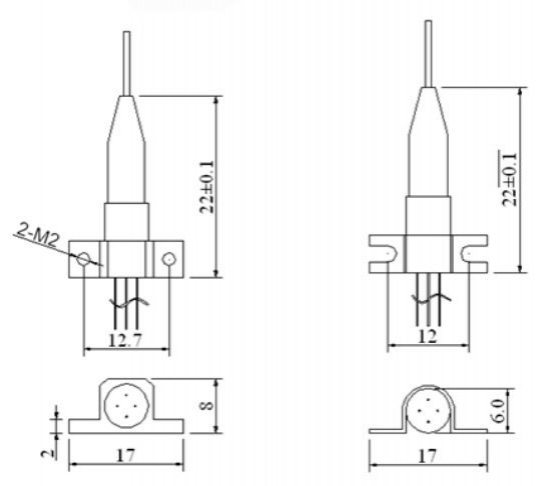

Absolute Maximum Ratings| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40〜+100 | °C |
| Operating Temperature | Top | -40 〜+85 | °C |
| Max Input Power | Pmax | +6 | dBm |
| Operating Voltage | Vop | 5 | V |
| PD Reverse Voltage | VR(PD) | 15 | V |
| Soldering Temp | - | 260 | °c |
| Soldering Time | - | 10 | s |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Wavelength Range | λ | 1100 | - | 1650 | nm | - |
| Power Range | P | -70 | - | +6 | dBm | 5V |
| Active Diameter | Ad | 25 | | 80 | um | - |
| Dark Current | Id | - | 0.2 | 0.5 | nA | 5V |
| Responsivity | R | - | 0.85 | 0.90 | A/W | λ=1310 nm |
| | 0.90 | 0.95 | λ=1550 nm | |||
| Frequency Bandwidth | Bw | 1 | | 10000 | MHz | |
| Frequency Response | Fr | - | ±0.5 | - | dB | |
| Capacitance | Ct | - | 0.5 | 0.65 | Pf | - |
| Response Time | Tr | 0.1 | - | | ns | - |
| CSO | - | - | -70 | - | dBc | |
| CTB | - | - | -80 | - | dBc | |
As an experienced InGaAs coaxial pigtail laser detector diode (analog optical active component ROSA) manufacturer in China, our company also offers InGaAs Coaxial Plug in laser diodes, plug in InGaAs coaxial photodetector diode modules, butterfly laser diodes, etc.
